Samsung mini PTZ camera: HK-SM8110

CATEGORY AND TAGS:
mini PTZ camera

1)Indoor mini PTZ Camera
2)Optical zoom 10X, digital zoom 10X
3)Presets qty: 128; presets speed: 360°/s
4)4 group patterns, recording time for each is not less than 300s
5)8 groups Cruise tours, max. 20 presets/tour
6)4chs Alarm Input and 1ch Alarm output(optional)

enquiry

Specifications

Samsung mini PTZ camera

Model number: HK-SM8110

Product Features

- Optic zoom 10X, digital zoom 10X
- Presets qty: 128; presets speed: 360°/s
- 4 group patterns, recording time for each is not less than 300s
- 8 groups Cruise tours, max. 20 presets/tour
- 32 private zones
- 8 zones with title
- 4chs Alarm Input and 1ch Alarm output (Optional)
- Automatically recognize protocols, typical Pelco-D, Pelco-P protocols
- RS485 signal control
- Manual speed 0.05°/s~360°/s
- Power supply: DC12V, 800mA
- Net Weight: about 780g

Specifications

Model #	HK-SM8110
Image Sensor	1/4 ± Interline Transfer CCD SAMSUNG Camera
Max. Pixels	NTSC:811(H)508(V) 410K PAL: 795(H)596(V) 470K
Effective Pixels	NTSC:768(H) x 494(V) 380K PAL: 752(H) * 582(V) 440K
Resolution	500TV Lines (Color), 570TV Lines (B/W)
Scan Format	2:1 interleaved
Zoom	100x(10X Optical zoom, 10x Digital Zoom)
Focus Length	f=3.8 to 38mm (F1.8)
Video Output	CVBS 1.0Vp-p/ 75
Minimum Illumination	Color 0.7Lux/ 0.02Lux(B/W) 50 IRE
Day&Night	Auto/Day/Night(IR Cut Filter,with IR Sensitive)
White Balance	Auto/Manual(Red&Blue Gain Adjustable)
Shutter speed	X128 ~ 1/120000 sec
SSNR	Low/Middle/High/Off
Protocol	Pelco-D, Pelco-P selectable
Pan/Tilt Speed	Preset:360°/Sec,Tilt:0°~180°/Sec;Manual:0.05° ~360°/Sec(Zoom Proportional)
Rotation Range	Pan: 360°(Endless) Tilt: 180°(Auto-Flip),95°(Normal Off)
Preset	127 preset(title,camera image setup available)
Pattern	4 pattern(1200 command/pattern, Approx.300s for Each Group)
Cruise Tour	8 Group( Max.20 action entries for Each Group)
Other Function	Image Auto-flip,Auto Parking, Power-up Action.etc
Communication	RS-485
Privacy Zone	4 Zones
OSD Menu	English Menu/PTZ Info
Operation Temp.	0°C~40°C(32°H~104°H)
Operation Humidity	5%-90%
Power	DC12V/2A
Installation	Wall,Pendant or Ceiling Mount Bracket

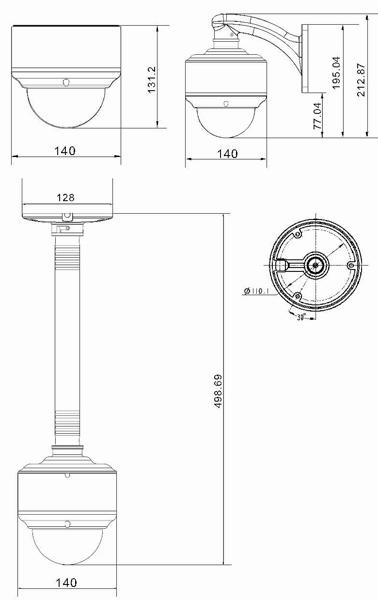

Dimension	139 * 169mm
Weight	1.75Kg
Package	box size: 12 * 12 * 9.5cm; 8pcs/Ctn, 21Kg/Ctn
