20m day night IR camera: HK-R312, HK-R318, HK-R410

CATEGORY AND TAGS:
IR camera
enquiry
  • Specifications

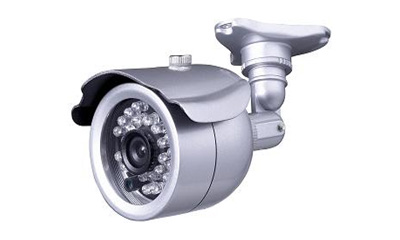

20m day night IR camera

Model number: HK-R312, HK-R318, HK-R410

20 meters ir cameras
  • 3.6/6mm Lens
  • 24pcs IR leds
  • 20M IR Distance

Specifications

Model No. HK-R312 HK-R318 HK-R410
Image Sensor 1/3″ sony supper HAD CCD 1/4″ sharp CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 24pcs IR LEDs
IR Visible Distance  20M  (Lens 6mm)
Sync System Internal
Minimum Illumination 0.5 Lux F1.2 0.8 Lux F1.2 0.8 Lux F1.2
Resolution 420 TVLs 480 TVLs 420 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
