P series CCD Box camera: HK-P312, HK-P318, HK-P410
CATEGORY AND TAGS:
Box Camera
enquiry

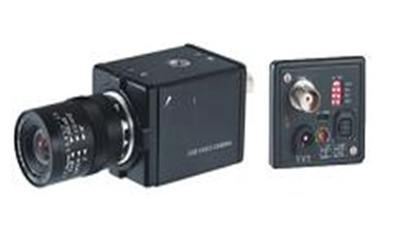

P series CCD Box camera
Model number: HK-P312, HK-P318, HK-P410
 |
Specifications
| Model No. |
HK-P312 |
HK-P318 |
HK-P410 |
| Image Sensor |
1/3″ Sony Super HAD CCD |
1/3″ Sony Super HAD CCD |
1/4″ Sharp CCD |
| Total Pixels |
N: 537(H)x505(V), P: 537(H)x597(V) |
| Scanning System |
NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec |
| Sync System |
Internal |
| Minimum Illumination |
0.5 Lux F1.2 |
0.3 Lux F1.2 |
0.8 Lux F1.2 |
| Resolution |
420 TVLs |
480 TVLs |
420 TVLs |
| S/N Ratio |
48dB (AGC OFF) |
| White Balance |
ATW / AWC switchable |
| Gain Control |
AGC ON / OFF switchable |
| Electronic Shutter |
NTSC: 1/60~1/120,000 sec.; PAL: 1/50~1/120,000 sec. |
| Auto Iris |
VIDEO |
| Lens Mount |
C/CS |
| B.L.C. Function |
ON/OFF switchable |
| Audio Output |
1.0V p-p 600Ω |
| Video Output |
Composite 1.0V p-p at 75Ω |
| Gamma Correction |
0.45 |
| Operation Temperature |
-10 °C ~ 50 °C |
| Operational Humidity |
within 85%RH |
| Power Supply |
DC12V/180mA, AC24V/150mA |
| Dimension |
118 * 50 * 50mm |
| Net Weight |
380g |
|
