HD 1.3M Network PTZ

» Network PTZ Camera » HD 1.3M Network PTZ

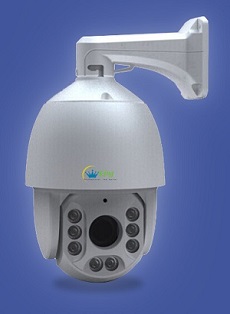

HD 960P/1.3M IR IP PTZ camera: HK-IS18CH-720P,HK-IT18CH-720P

CATEGORY AND TAGS:
HD 1.3M Network PTZ

1)Outdoor waterproof IR IP PTZ camera
2)Support iPhone, Windows Mobile, BlackBerry, Symbian, Android
3)IR distance: 120M
4)Support FireFox, Chrome, Internet Exploerer
5)ONVIF Ver. 2.2 conformance

enquiry

Specifications

HD 960P/1.3M IR IP PTZ camera

Model #: HK-IS18CH-720P		Model #: HK-IT18CH-720P

Online Demo in our head Office

HD_IR_PTZ_Camera_Online Demo (Please contact us to get User/Password)

Online Demo on Youtube and facebook

HK_HT-IR18CH-1080P HD IP PTZ Online Demo on Youtube (View the Tallest building in Shenzhen online)

HK-HT-IR18CH-1080P HD IP PTZ Online Demo on facebook (View the Tallest building in Shenzhen online)

Record Demo

Product Features

18x optical zoom
H.264 dual-stream encoding
Max 25/30fps@960P(1920×960)
Multiple network monitoring: Web viewer,(FireFox,Chrome,Internet Explorer) and CMS
ONVIF Ver. 2.2 conformance.
Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Up to 10 viewers can directly access the camera simultaneously
Two group IR LED , the Max. IR distance is 120M
Max 180°/s pan speed, 360°endless pan rotation
Up to 220 presets, 1 auto scan, 4 tour, 3pattern
IP66

Specifications

Model	HK-IS18CH-720P	HK-IT18CH-720P
All-In-One Camera	China All-in-One HDCamera
Sensor	1/3″ CMOS
Effective Pixels	1.3M
Resolution	960P (1920 * 960)
Lens	f=4.1~73.8mm
Zoom	18x Optical Zoom
Minimum illumination	0.1Lux/0.02 Lux
Horizontal Angle of View	4.2 ~ 54.8
S/N ratio	> 50dB
Electric shutter	1/50~1/10000s
Privacy Zone	OFF
IR Induce	YES
Color to Black/White	Yes
WDR	NO
System	Embedded RTOS design, dual core 32-bit DSP(TI DAVINCI DM368F)
Video	H.264 main profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjust
Resolution	Main stream:1280960,1280720(720P);Sub stream:704*576(D1)
ONVIF	2.0
Network	1 * RJ45, 10/100M; Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
CVBS video output	Support CVBS video output and overlying DDNS,user name,password and other info.
3G	Support(optional)
WIFI	Support(optional)
Mobile Monitor	Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Power Supplier	DC 12V power supply;
Other Function	Support WEB remote config,OSD,motion detect
Temperature Storage	-45 TO 65 °C;
Temperature Operation	-40 TO 60 °C;
