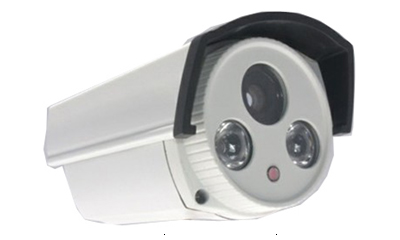

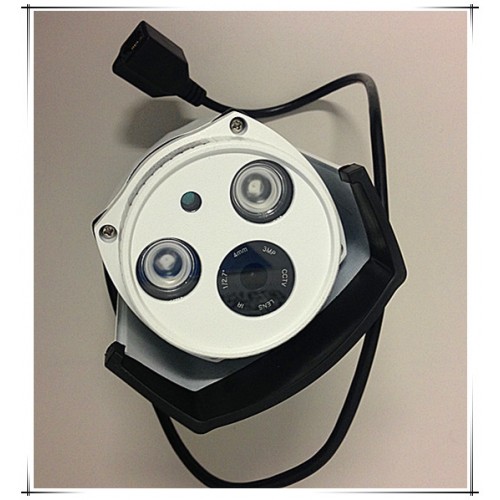

1M/720P HD IR IP camera: HK-F210(-P)

CATEGORY AND TAGS:
IP Camera

1)Support iPhone, Windows Mobile, BlackBerry, Symbian, Android)
2)IR distance: 30-40M
3)Support FireFox, Chrome, Internet Exploerer
4)ONVIF Ver. 2.2 conformance
5)Support POE (optional)

enquiry

Specifications

1M/720P HD IR IP camera

Model #: HK-F210(-P)

1mp ip cam bullet: hk-ht-f210(-P)

Network Features

- POE is optional
- Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
- Support Multiple Browsers such as FireFox, Chrome, Internet Exploerer
- Built-in Web server enables the use of a standard Web browser for viewing and management
- Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
- Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP
- ONVIF Ver. 2.2 conformance
- Support whole TCP/IP protocol
- Support CVBS video output and overlying DDNS, user name, password and other info
- Up to 10 viewers can directly access the camera simultaneously

Compression Features

-  Embedded RTOS design,dual core DSP(Hi3518E),pure hardware compression,watchdog
- H.264 Main Profile
- Up to 25 frames per second in all resolutions ranging up to 720P(1280*720)
- Support dual stream, AVI format
- Low power consuming of the DSP, suit to long time running
- The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
- Support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable

Specifications

Model #	HK-F210(-P)
System	Embedded RTOS design,dual core DSP(Hi3518E),pure hardware compression, watchdog
Pixel	2.0 Mega Pixel
Image Sensor	1/4″ 1.0M OV09712 Scan CMOS
Min. Illumination	IR ON 0Lux
Lens	HD 8mm, 4/6/8/12/16mm (optional)
Lens interface	CS
Day&Night	IR-cut
Compression
Video Compression	H.264 High Profile, JPEG Screen shot
Main/Extra Stream	720P(1280720)/D1(704576)
Video output bit rate	32Kbps~16Mbps
Audio Compression	G.711a
Max. Resolution	1280*720
Frame Rate	25fps(1280*720)
Image Setting	Saturation, Brightness, Contrast adjustable through Client software or web server
Network features
Storage	Network storage, TF card storage(optional)
Intelligent Alarm	Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP
Basic	Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection
NVR/HVR	YES
Mobile Monitor	Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
ONVIF	2.2
Multiple Browsers	FireFox, Chrome, Internet Exploerer
Interface
Communication Interface	1pc RJ45 10M/100M self-adaptive Ethernet interface
Video Output	1Vp-p Composite Output(75Ω/BNC)
General parameters
Operating Condition	-10~60 °C, Humidity 90% or less(non-condensing)
Power Supply	DC12V±10%
Power Consumption	6W MAX
Protection Range	IP66
LED	2pcs IR Array LEDs, IR distance 40M
