50m day night IR camera: HK-H312, HK-H318, HK-H352, HK-H365, HK-H410

CATEGORY AND TAGS:
IR camera
enquiry
  • Specifications

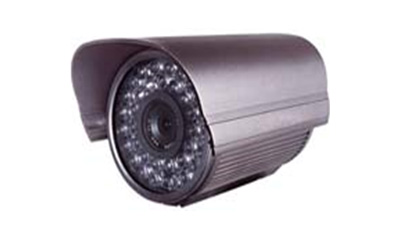

50m day night IR camera

Model number: HK-H312, HK-H318, HK-H352, HK-H365, HK-H410

50 meters ir cameras
  • 48pcs High Power IR LEDs
  • 50M IR Distance
  • 12mm Lens

Specifications

Model No. HK-H410 HK-H312 HK-H318 HK-H352 HK-H365
Image Sensor 1/4″ sharp CCD 1/3″ sony supper HAD CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V) N: 811(H)x508(V), P: 795(H)x596(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 48pcs High Power IR LEDs
IR Visible Distance  50M  (Lens 12mm)
Sync System Internal
Minimum Illumination 0.8 Lux F1.2 0.5 Lux F1.2 0.2 Lux F1.2 0.2 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVLs 420 TVLs 480 TVLs 520 TVLs 650 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
