22m day night IR camera: HK-F312, HK-F318, HK-F410, HK-F412

CATEGORY AND TAGS:
IR camera
enquiry
  • Specifications

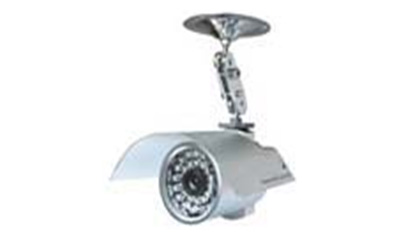

22m day night IR camera

Model number: HK-F312, HK-F318, HK-F410, HK-F412

22 meters ir cameras
  • 3.6/6mm Lens
  • 24pcs IR leds
  • 20M IR Distance

Specifications

Model No. HK-F410 HK-F412 HK-F312 HK-F318
Image Sensor 1/4″ sharp CCD 1/4″ sony supper HAD CCD 1/3″ sony supper HAD CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 30pcs IR LEDs
IR Visible Distance  22M  (Lens 6mm)
Sync System Internal
Minimum Illumination 0.8 Lux F1.2 0.8 Lux F1.2 0.8 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVLs 420 TVLs 420 TVLs 480 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
