Cards are stackable to obtain 64 channels maximum

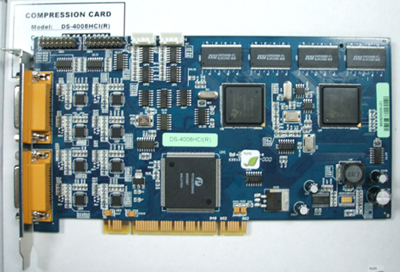

DS-4008HCI
8 channels video and audio CIF(real time)
or 4 channels video and audio 4CIF (real time)
or 3 channel 4CIF and 2 channel CIF (real time)
or 2 channel 4CIF and 4 channel CIF (real time)
or 1 channel 4CIF and 7 channel CIF (real time)
or 8 channel DCIF (real time)
or 8 channel 4CIF(not real time)
Features & Functions
Real-time video and audio compression, no frame lost
4CIF preview resolution
Comply with PCI 2.2 standard, a PC can support up to 64 channels
Support WINDOWS 2000/XP operating system
Setable video quality and bitrate
Setable brightness, contrast, saturation and hue of video signal
Support motion detection
Support OSD, LOGO and MASK overlay
Support watermark technology
Support double encoding
Specifications
Item
Description
Video Format
PAL and NTSC
Video Input
8 Ch BNC (1.0Vp-p, 75ohm)
Audio Input
8 Ch BNC (2.0Vp-p, 1Kohm)
Preview Resolution
Resolution: 704*576(PAL),704*480(NTSC)
Video Compression
H.264, Support CBR, VBR; Frame: 25F/s(PAL),30F/s(NTSC); Output: 32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF)
