Home >> Products >> Network camera >> HD 2.0M network camera >> HK-HT-F220(-P)

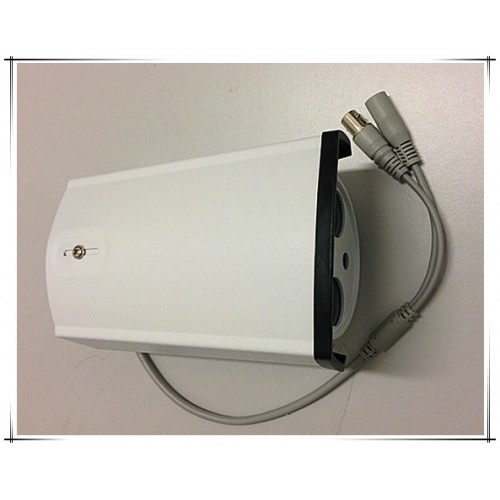

2M/1080P HD IR IP camera

Model #: HK-HT-F220(-P)



Network Features

  1. POE is optional
  2. Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
  3. Support Multiple Browsers such as FireFoxChromeInternet Exploerer
  4. Built-in Web server enables the use of a standard Web browser for viewing and management
  5. Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
  6. Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP
  7. ONVIF Ver. 2.2 conformance
  8. Support whole TCP/IP protocol
  9. Support CVBS video output and overlying DDNS, user name, password and other info
  10. Up to 10 viewers can directly access the camera simultaneously

Compression Features

  1.  Embedded RTOS design,dual core DSP(Hi3516C),pure hardware compression,watchdog
  2. H.264 Main Profile
  3. Up to 25 frames per second in all resolutions ranging up to 1080P(1920*1080)
  4. Support dual stream, AVI format
  5. Low power consuming of the DSP, suit to long time running
  6. The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
  7. Support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable

Specifications

Model # HK-HT-F220(-P)
System Embedded RTOS design,dual core DSP(Hi3516C),pure hardware compression, watchdog
Pixel 2.0 Mega Pixel
Image Sensor 1/2.8" SONY IMX122 low-illumination CMOS
Min. Illumination IR ON 0Lux
Lens HD 8mm, 4/6/8/12/16mm (optional)
Lens interface CS
Day&Night IR-cut
Compression
Video Compression H.264 High Profile, JPEG Screen shot
Main/Extra Stream 1080P(1920*1080)/D1(704*576)
Video output bit rate 32Kbps~16Mbps
Audio Compression G.711a
Max. Resolution 1920*1080
Frame Rate 25fps(1920*1080)
Image Setting Saturation, Brightness, Contrast adjustable through Client software or web server
Network features
Storage Network storage, TF card storage(optional)
Intelligent Alarm Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error
Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP
Basic Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection
NVR/HVR YES
Mobile Monitor Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
ONVIF 2.2
Multiple Browsers FireFoxChromeInternet Exploerer
Interface
Communication Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
Video Output 1Vp-p Composite Output(75Ω/BNC)
General parameters
Operating Condition -10~60 °C, Humidity 90% or less(non-condensing)
Power Supply DC12V±10%
Power Consumption 6W MAX
Protection Range IP66
LED 2pcs IR Array LEDs, IR distance 40M
