Home >> Products >> CCTV camera >> Day/Night IR Camera >> HK-HB312, HK-HB318, HK-HB352, HK-HB352IRC, HK-HB355IRC

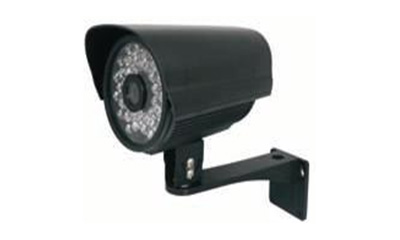

80m day night IR camera

Model number: HK-HB312, HK-HB318, HK-HB352, HK-HB352IRC, HK-HB355IRC
110 meters ir cameras
  1. 60pcs High Power IR LEDs
  2. 80M IR Distance
  3. 16mm Lens

Specifications

Model No. HK-HB312 HK-HB318 HK-HB352 HK-HB352IRC HK-HB355IRC
Image Sensor 1/3" sony CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V) N: 811(H)x508(V), P: 795(H)x596(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 60pcs High Power IR LEDs
IR Visible Distance  80M  (Lens 16mm)
Sync System Internal
Minimum Illumination 0.8 Lux F1.2 0.5 Lux F1.2 0.8 Lux F1.2 0.3 Lux F1.2
Resolution 420 TVLs 480 TVLs 520 TVLs 520 TVLs 550 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
