Home >> Products >> CCTV camera >> Box Camera >> HK-D310, HK-D312, HK-D318, HK-D352, HK-D410

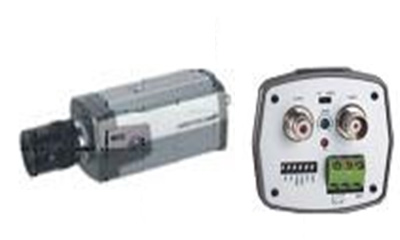

CCD Box camera with audio

Model number: HK-D310, HK-D312, HK-D318, HK-D352, HK-D410
cctv box cameras audio

Specifications

Model No. HK-D410 HK-D310 HK-D312 HK-D318 HK-D352
Image Sensor 1/4" Sharp CCD 1/3" Sharp CCD 1/3" Sony Super HAD CCD
Total Pixels N: 537(H)x505(V), P: 537(H)x597(V) N: 811(H)x508(V), P: 795(H)x596(V)
Scanning System NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
Sync System Internal
Minimum Illumination 0.8 Lux F1.2 0.8 Lux F1.2 0.5 Lux F1.2 0.8 Lux F1.2 0.3 Lux F1.2
Resolution 420 TVLs 480 TVLs 520 TVLs
S/N Ratio 48dB (AGC OFF)
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
Electronic Shutter NTSC: 1/60~1/120,000 sec.; PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output 1.0V p-p 600Ω
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/180mA, AC24V/150mA
Dimension 112 * 64 * 55mm
Weight Gross weight, 0.6kg; net weight, 0.36kg
