Home >> Products >> CCTV camera >> Day/Night IR Camera >> HK-VZ312, HK-VZ318, HK-VZ355, HK-VZ365, HK-VZ370

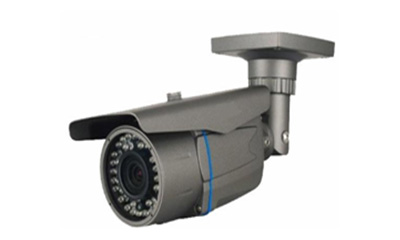

weatherpoof 45~55meters Day/Night IR camera

Model number: HK-VZ312, HK-VZ318, HK-VZ355, HK-VZ365, HK-VZ370
45~55 meters ir array cameras
  1. IR Waterproof Camera
  2. 4~9mm lens (2.8-12mm is Optional)
  3. DC12V 1000mA
  4. 36pcs F8(72pcs F5) IR LEDs
  5. IR distance: 45~55 meters
  6. 3-Axis & Hide Cable bracket
  7. color: gray and white

Specifications

Model No. HK-VZ312 HK-VZ318 HK-VZ352 HK-VZ365 HK-VZ370
Image Sensor 1/3" sony CCD 1/3" sony CCD 1/3" sony CCD 1/3" Sony CCD Eiffio II 1/3" Sony CCD Eiffio II
Type Color/Monochrome (Removable IR Cut Filter)
Total Pixels PAL: 500(H)*582(V) NTSC: 510(H)*492(V) PAL: 500(H)*582(V) NTSC: 795(H)*596(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 36pcs F8(72pcs F5) IR LEDs
IR Visible Distance  45~55m
Lens 8/12/16mm CS lens optional
Sync System Internal
Minimum Illumination 0.05 Lux F1.2 0.01 Lux F1.2 0.01 Lux F1.2 0.001 Lux F1.2 0.001 Lux F1.2
Resolution 420 TVLs 480 TVLs 550 TVLs 650 TVLs 700 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -20 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V±10% Max 2.0W
Net Weight 1.5Kg
