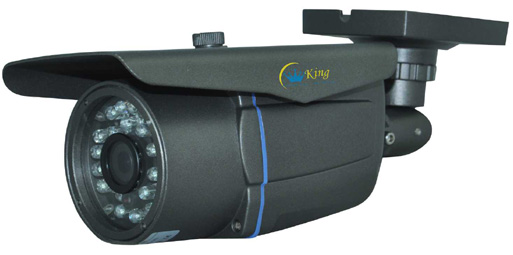

weatherpoof 40 meters IR Night Vision camera

Model number: HK-V312, HK-V318, HK-V365, HK-V370
40 meters ir array cameras
  1. 4/6/8mm lens
  2. 42 IR LEDs
  3. IR distance: 40m
  4. color: gray and white
  5. 3-Axis & Hidden Cable bracket

Specifications

Model No. HK-V312 HK-V318 HK-V365 HK-V370
Image Sensor 1/3" sony CCD 1/3" sony CCD 1/3" Sony CCD Eiffio II 1/3" Sony CCD Eiffio II
Type Color/Monochrome (Removable IR Cut Filter)
Total Pixels PAL: 500(H)*582(V) NTSC: 510(H)*492(V) PAL: 500(H)*582(V) NTSC: 795(H)*596(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 42pcs IR LEDs
IR Visible Distance  40m
Lens 8/12/16mm CS lens optional
Sync System Internal
Minimum Illumination 0.05 Lux F1.2 0.01 Lux F1.2 0.001 Lux F1.2 0.001 Lux F1.2
Resolution 420 TVLs 480 TVLs 650 TVLs 700 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -20 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V±10% Max 2.0W
Net Weight 0.8Kg
