Home >> Products >> CCTV camera >> Dome Camera >> HK-T312, HK-T318, HK-T352

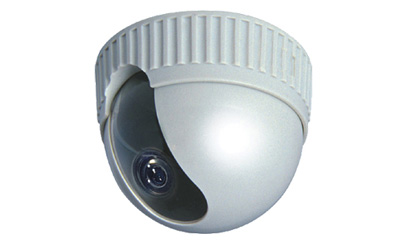

T series CCTV dome camera

Model Number: HK-T312, HK-T318, HK-T352

t series dome cameras

Specifications

Model No. HK-T312 HK-T318 HK-T352
Image Sensor 1/3" Sony Super HAD CCD 1/3" Sony Exview HAD CCD
Total Pixels N: 537(H) x 505(V), P: 537(H) x 597(V) N:811(H)x508(V)    P: 795(H)x596(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL, 60 fields/sec(NTSC)
Sync System Internal
Minimum illumination 0.5 Lux F1.2 0.8 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVL 480 TVL 520 TVL
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec.   PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -10°C TO 50°C
Operational Humidity within 85%RH
Power Supply DC12V/180mA
Packing box size: 14.1 * 14.2 * 11.3 cm
Weight Gross weight, 0.6kg; net weight, 0.29kg
