Home >> Products >> CCTV camera >> Dome Camera >> HK-SM312, HK-SM318, HK-SM410

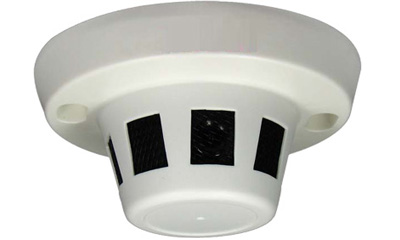

Smoke detect hidden dome camera

Model Number: HK-SM312, HK-SM318, HK-SM410

hidden dome cameras

Specifications

Model No. HK-SM410 HK-SM312 HK-SM318
Image Sensor 1/4" Sharp Super CCD 1/3" sony super HAD CCD
Total Pixels NTSC: 542 (H)X492 (V)   PAL: 512 (H) X 582 (V) N:811(H)x508(V)    P: 795(H)x596(V)
Scanning System NTSC: 525 lines, 60 fields/sec    PAL: 625 lines, 50 fields/sec
Sync System Internal
Minimum illumination 0.8 Lux F1.2 0.5 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVL 420 TVL 480 TVL
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec.   PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -10°C TO 50°C
Operational Humidity within 85%RH
Power Supply DC12V/180mA
Dimensions φ98*78mm
Net Weight 480 g
