Home >> Products >> DVR >> D1 DVR >> HK-S3416F, HK-S3424F, HK-S3432F

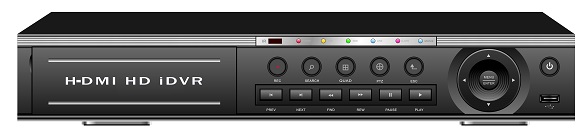

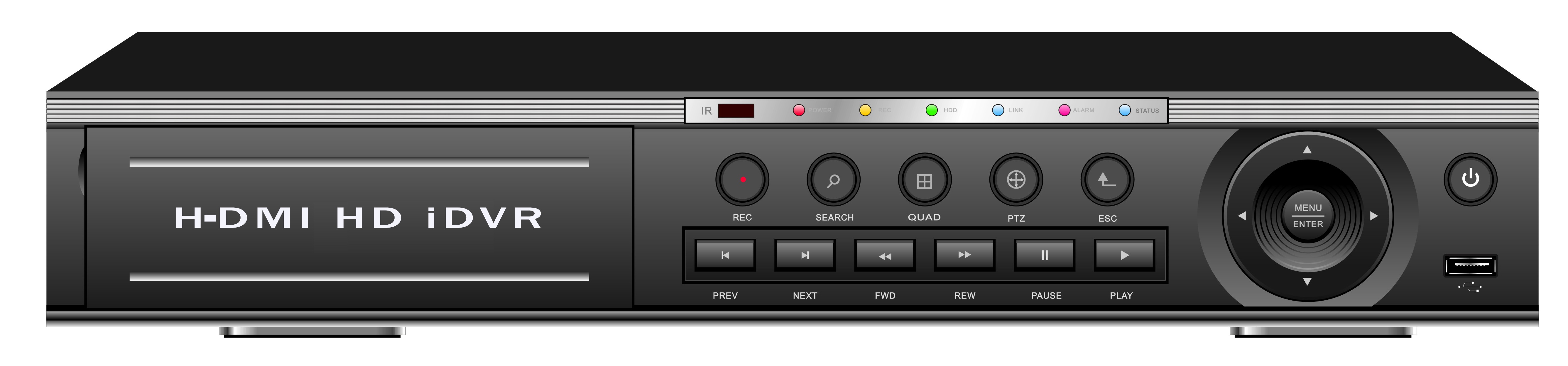

16ch/24ch/ 32ch H.264 network DVR

Model #: HK-S3416F,HK-S3424F,HK-S3432F

24ch d1 network DVR
244ch d1 network DVR
functions of standalone DVR

Features

  1. H.264 standard compression format with efficient processing and clear image.
  2. Dual encoding streams flexible for network transmission and mobile phone monitoring.
  3. Support Multi-language: English,Chinese Simplified,Chinese Traditional,Italian,Spanish,Japanese,Russian,French, German,Portuguese,Turkish,Polish,Hungarian,Finnish,Persian,Thai,Greek,Vietnamese, Romanian,Brazilian,Swedish,Arabic,Bahasa Indonesia,Hebrew,Ukrainian etc 30 kinds of languages
  4. New standard for professional DVR with high performance and competitive price.
  5. Support 3G Mobilephone Surveillance with Window Mobile, iPhone,iPad, Android, Blackberry,Symbian.
  6. Manual,timing,motion detection,video blind and video loss recording
  7. Support P2P Cloud Vision function,One step to link internet
  8. Support VGA and CVBS(TV) simultaneous output.
  9. Support remote IE, Netview, CMS, OSD live preview, settings, backup or playback.
  10. Support Custom DDNS Domain name
  11. Support IE, Chrome, Firefox, Safari browsers
  12. Support TCP/IP,UDP,DHCP,IP Filter,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,Alarm Server,ARSP
  13. Support backup & upgrade with USB flash disk.
  14. Powerful network software:built-in web server, multi-DVR client, XMEYE(mobile phone surveillance software) & CMS.
  15. Supports SATA HDD (2 or 4 SATA, Maximum 24TB)
  16. Graphical view of GUI,user-friendly,easy to understand and operation

Specifications

Model No.
HK-S3416F
HK-S3424F
HK-S3432F
Compression Format H.264 Standard compression
Operation System Embedded LINUX
Main Processor Hi3521 Hi3520A Hi3521
Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network
System Resources Pentaplex function: live, recording, playback, backup & remote access
Video Input BNC x 16, 1.0VP-P,75O BNC x 24, 1.0VP-P,75O BNC x 32, 1.0VP-P,75O
Video Output 1CH BNC TV-OUT, 1HDMI; Support VGA and BNC simultaneous output
Main Stream Record Speed D1 400FPS@PAL; D1 480FPS@NTSC CIF 320x240 600FPS@PAL; CIF 352x240 720FPS@NTSC CIF 320x240 800FPS@PAL; CIF 352x240 960FPS@NTSC
Extra Stream Speed QCIF(1~25/30fps)
Recording Mode Manual,timing,motion detection,video blind and video loss recording
Playback 4ch 8ch 16ch
Audio Input/Output N/A 8ch/1ch
Hard Disk Storage 2 or 4 SATA,Maximum 24TB
Alarm Input/Output 4ch/1ch 8ch/1ch 16ch/1ch
Multiplex Operation Live display / record / playback / backup / network operations
Playback mode Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar
Backup Device U-disk/Hard disk/download
Pre-alarm Recording recording for 5 seconds before alarming
Network Protocol TCP/IP,UDP,DHCP,IP Filter,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,Alarm Server,ARSP
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface Internet Explorer (5 users access simultaneously); Operating System: Windows Vista / XP / 2000
VGA Interface Built-in
IR Remote Control YES (IR receiver built-in)
Mobile Phone Support Symbian, Windows CE, iPhone, Google Android and BlackBerry
Language English, Chinese Simplified, Chinese Traditional, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Romanian, Brazilian, Swedish, Arabic, Bahasa Indonesia, Hebrew, Ukrainian
PTZ Control Yes
USB Mouse Yes
Power Source 12V/6A DC(±10%)
Key Lock Yes(Password Protection)
System Recovery System auto recovery after power failure
Dimension 1.5U,390*320*50mm(DVR Size); 450mm X 430mm X 120mm(Pack Size)
Working Temperature -10 ~ +55°C
Working Humidity 10%- 90%
Weight 6.3KG (No HDD) 8.7KG (No HDD)

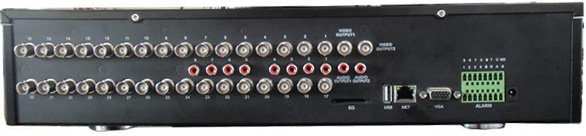

Connections

Connections

Application

Support IE browser monitoring, Netview Client and CMS Software for multiple DVR from different places up to 255 IP simultaneously, but at most up to 64ch windows display simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR, as well as monitoring and playback can not be a problem at the same time.

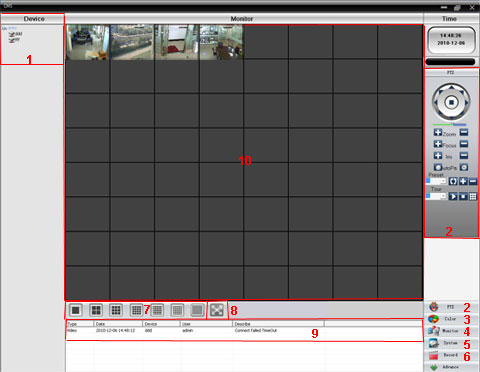

CMS software

CMS software
  1. Display all added device
  2. PTZ: Zoom, Focus, Iris, AutoPa, Preset, Tour
  3. Color:Brightness,Contrast,Saturation and Hue adjust.
  4. Monitor:Live display status
  5. System Device Manager: Local Config, Remote Config, Account, Local Log
  6. Record: Playback recording file including Local playback and remote playback.
  7. split switching: 1, 4, 9, 16, 25, 36 and 64 frames.
  8. Full screen: full screen display the monitor area.
  9. Local Log Info: current local log information.
  10. Monitor Area:live display video area.
