Home >> Products >> DVR >> LCD AHD/NVR/DVR Combo >> HK-S0704M, HK-S0708M

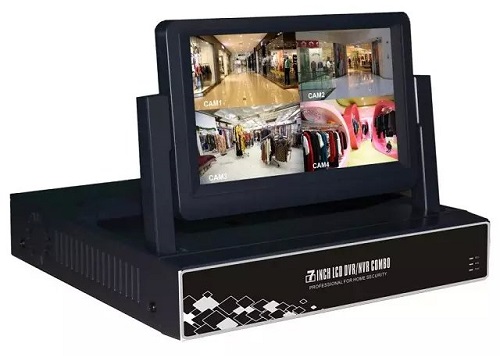

7inch AHD/NVR/DVR With Built-in LCD Monitor

Model #: HK-S0704M, HK-S0708M

LCD NVR/DVR With Built-in LCD Monitor

h 264 d1 DVR



Features

  1. 7inch LCD H.264 Network AHD/NVR/DVR
  2. DVR with built-in lcd monitor
  3. H.264 compression algorithm ideal for standalone DVR
  4. Support 1CH 960P/720P Real Time Playback or 2ch 1080P/ 960P/ 720P Real Time Playback
  5. Support 4/8CH 1080P@25fps,4/8CH 960H@25fps.Real Time Recording
  6. Supports SATA HDD (maximal value of each hard disk is up to 4TB)
  7. Support Multi-language: English, Italian, Turkish, Russian, French, Portuguese, Spanish, Polish, Hebrew, Thai, Traditional Chinese, Japanese.
  8. New standard for professional DVR with high performance and competitive price.
  9. Support Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
  10. Dual encoding streams flexible for network transmission and mobile phone monitoring.
  11. Multiple function: Live, Recording, Playback, Backup & Remote access.
  12. Smart video detection: motion detection, camera blank, video loss.
  13. Support 3G & WIFI USB Modem.



Specifications

Model No. HK-S0704M HK-S0708M HK-S0716M
Compression Format H.264 / G.711
Operation System Embedded LINUX
Main Processor Hi3515C Hi3520D Hi3520D
Display screen 1/4 screen 1/4/8/9ch screen 1/4/8/9/16ch screen

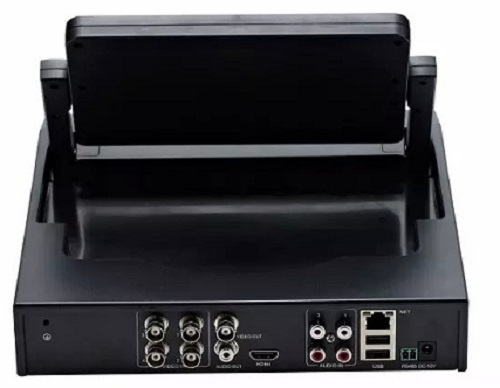

Analog Video Input BNC x 4, 1.0VP-P,75O BNC x 8, 1.0VP-P,75O BNC x 16, 1.0VP-P,75O
IP Input 4CH IPC Input 16CH IPC Input 16CH IPC Input
Video Output Monitor:D1;HDMI, VGA:(1280*1024, 1024*768, 1280*720)
Video Standards PAL(100f/s); NTSC(120f/s) PAL(200f/s); NTSC(240f/s) PAL(400f/s); NTSC(480f/s)
Playback quality 720P/960P/1080P
Encode capability 4ch 720P AHD/960P Real Time Recording 8ch 720P AHD/960P Real Time Recording 16ch 720P AHD/960P Real Time Recording
Hybrid: 2ch D1 Analog + 1ch 1080P IP + 1ch 720P IP
Pure network: 2*1080P/4*720P/8*960H/1*1080P+1*720P+2*D1
Record Quality 4*720P@25fps/4*AHD-L@25fps 8*960H@25fps/8*D1 16*960H@25fps/16*D1
Playback quality 1*720P@25fps/4*AHD-L@25fps 8*D1@25fps/1*960H 16*D1@25fps/1*960H
Decode capability 1ch 960P/720P Real Time Playback 2ch 1080P/ 960P/ 720P Real Time Playback 2ch 1080P/ 960P/ 720P Real Time Playback
Recording Mode Manual / Timer / Motion
Audio Input/Output 1 audio input, 1 audio output (RCA)
Hard Disk Storage 1 * SATA HDD (capacity up to 4TB)
Multiplex Operation Live display / record / playback / backup / network operations
Backup Device USB 2.0 flash drive / USB moving Hard disk / Network
Network Protocol Onvif2.0 or above, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface Internet Explorer (10 users access simultaneously)
Operating System: Windows Vista / XP / 2000,Win 7
VGA Interface Built-in
Video Loss Detection Yes
PTZ Control 1*RS485 port, Support more than 20 kinds protocols.
USB Port 2*USB 2.0 port
Power Source 12V/3A DC(±10%)
Dimension 1U, 250mm(L)* 240mm(W)* 46mm(H)
Working Temperature -10 ~ +55°C
Working Humidity 10%- 90%
Weight 2.6KG(No HDD)

*Design and specifications are subject to change without notice.
