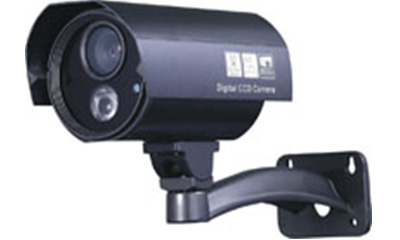

60m IR array camera
Model number: HK-LEA312, HK-LEA352, HK-LEA365, HK-LEA370 |
- Color 1/3″ Sony CCD
- WDR/BLC/ECLPS
- Ultral High Resolution 700TVL
- 3D-DNR
- 8X Digital Zoom
- Zone Motion detection
- Privacy Region Shielded
- O.S.D Menu
- 1pc New Generation Array Leds, IR Distance 60M
Specifications
| Model No. |
HK-LEA312 |
HK-LEA352 |
HK-LEA365 |
HK-LEA370 |
| Image Sensor |
1/3″ sony super HAD CCD |
1/3″ sony super HAD CCD |
1/3″ sony super HAD CCD |
1/3″ sony super HAD CCD II |
| Type |
Color/Monochrome (Removable IR Cut Filter) |
| Total Pixels |
PAL: 500(H)*582(V) NTSC: 510(H)*492(V) |
PAL: 500(H)*582(V) NTSC: 795(H)*596(V) |
PAL: 795(H)*596(V) NTSC: 811(H)*508(V) |
PAL: 795(H)*596(V) NTSC: 811(H)*508(V) |
| Scanning System |
625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC) |
| IR Led |
1pc New generation LED Array |
| IR Visible Distance |
60M |
| Lens |
8/12/16mm CS lens optional |
| Sync System |
Internal |
| Minimum Illumination |
0.5 Lux F1.2 |
0.05 Lux F1.2 |
0.05 Lux F1.2 |
0.05 Lux F1.2 |
| Resolution |
420 TVLs |
520 TVLs |
650 TVLs |
700 TVLs |
| White Balance |
ATW / AWC switchable |
| Gain Control |
AGC ON / OFF switchable |
| S/N Ratio |
48dB (AGC OFF) |
| Electronic Shutter |
NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec. |
| Auto Iris |
VIDEO/DC |
| Lens Mount |
C/CS |
| B.L.C. Function |
ON/OFF switchable |
| Audio Output |
No |
| Video Output |
Composite 1.0V p-p at 75 ohm |
| Gamma Correction |
0.45 |
| Operation Temperature |
-20 °C ~ 50 °C |
| Operational Humidity |
within 85%RH |
| Power Supply |
DC12V±10% Max 2.0W |
| Net Weight |
1.3Kg |
|
