Home >> Products >> CCTV camera >> Day/Night IR Camera >> HK-LD412

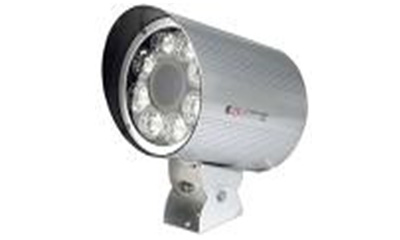

Day/Night 100m IR camera

Model number: HK-LD412
100 meters ir cameras
  1. ALL IN ONE CAMERA
  2. COLOR CCD IN DAY
  3. 100M IR distance
  4. 27X Zoom, F=3.9~105.3mm

Specifications

Model No. HK-LD412
Image Sensor 1/4" sony CCD
Total Pixels N: 811(H)x508(V), P: 795(H)x596(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 133pcs High Power IR LEDs
IR Visible Distance  100M  (Lens 16mm)
Sync System Internal
Minimum Illumination 0.5 Lux F1.2
Resolution 480 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
