Home >> Products >> CCTV camera >> Day/Night IR Camera >> HK-HU312, HK-HU318, HK-HU355, HK-HU365, HK-HU370, HK-HU410

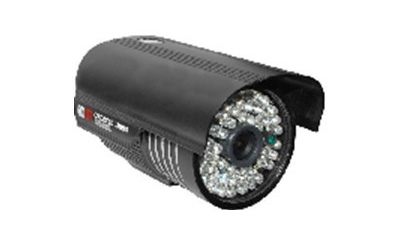

40~50meters Day/Night IR camera

Model number: HK-HU312, HK-HU318, HK-HU355, HK-HU365, HK-HU370, HK-HU410
40~50 meters ir array dome cameras
  1. 6/8/12/16/25mm lens
  2. 36pcs F8 IR LEDs
  3. IR distance: 40-50m
  4. black cover
  5. size: Φ9 * 17(L)cm

Specifications

Model No. HK-HU312 HK-HU318 HK-HU352 HK-HU365 HK-HU370
Image Sensor 1/3" sony CCD 1/3" sony CCD 1/3" sony CCD 1/3" Sony CCD Eiffio II 1/3" Sony CCD Eiffio II
Type Color/Monochrome (Removable IR Cut Filter)
Total Pixels PAL: 500(H)*582(V) NTSC: 510(H)*492(V) PAL: 500(H)*582(V) NTSC: 795(H)*596(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 36pcs F8 IR LEDs
IR Visible Distance  40~50m
Lens 8/12/16mm CS lens optional
Sync System Internal
Minimum Illumination 0.05 Lux F1.2 0.01 Lux F1.2 0.01 Lux F1.2 0.001 Lux F1.2 0.001 Lux F1.2
Resolution 420 TVLs 480 TVLs 550 TVLs 650 TVLs 700 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -20 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V±10% Max 2.0W
Net Weight 1.3Kg
