Home >> Products >> Network PTZ camera >> HD 2.0M/1080P network PTZ camera >> HK-HT-SH100-1080P

HD 1080P/2.0M IR IP PTZ camera

Model #: HK-HT-SH100-1080P


Network Features

  1. 4.5" Total Metal body construction, IP66 rate protection
  2. 1/3" CMOS, 2.0 Megapixels, 10X optical zoom
  3. HD-IP digital interface output, 1080P high definition image
  4. OSD menu available
  5. PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
  6. IR distance:  50M

Specifications

Camera
Sensor 1/3" progressive scan CMOS
Effective pixels 1080P (1080 * 1920)
Total pixels 2.0 Megapixels
Output Pixel 1920*1080@30fps(N),1920*1080@25fps(P); 1280*720@60fps(N),1280*720@50fps(P)
Lens 10X optical zoom f=5mm(W) ~ 50mm(T) ±5%
Iris F1.6 ~F2.8
View of Angle H: 51.8°(W)~5.86°(T) V: 39.1°(W)~4.4°(T)
Min. illumination Color: 0.01 Lux \  B/W: 0 Lux
D/N IR-CUT
BLC Auto
WB Auto
S/N Ratio >50dB
Dome
Communications Protocol TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP
Storage (optional) One SD/SDHC card
Software Control IE, CMS, Management Platform
Mobile View(optional) Support Windows, Symbian, iPhone platform smartphone
Preset Points 128
Pattern Scan 4 groups
Guard Tours 4 groups
Guard Points Max.16 points, dwell time user selectable
Operating temperature Indoor: 0° ~ +40°; Outdoor: -40° ~ +60°
Operation menu Multiple languages for OSD menu, English, Spanish etc
Pan and Tilt position display Support
Auto Control IR LED PWM
Support ambient light detection IR illumination on 1-15 grades selectable
LEDs 6pcs
IR distanc up to 50 meters
Humidity ≤95% Non Condensing
Power DC12V ≤4A
Consumption < 25W
Lightning Protection Transient voltage 6000V
Communication mode RS485 (+/-)
Connection Coaxial Cable
Size/Weight 2.7KG
Related validation IP66,CE,FCC,RoHs

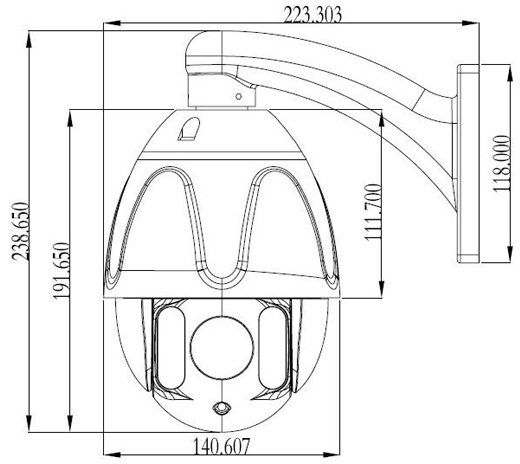

Dimension

dimenstion of ht-sh100-1080p
