Home >> Products >> PTZ camera >> standard PTZ camera >> HK-GNS8277, HK-GNS8182, HK-GNS8272, HK-GNS8362, HK-GNS8225

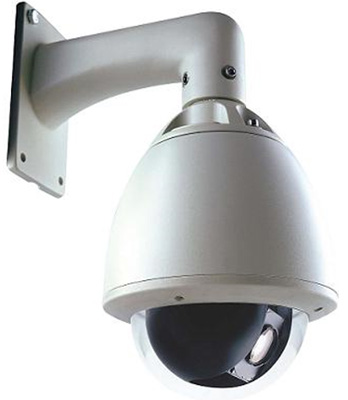

Intelligent PTZ Dome Camera

Model number: HK-GNS8277, HK-GNS8182, HK-GNS8272, HK-GNS8362, HK-GNS8225

36x zoom camera ptz

Features

  1. 220 presets, ±0.1° preset accuracy
  2. 4 tours max. 27 presets/tour, 4 patterns, 4 cruise
  3. OSD Menu for Programmable Functions and password protection
  4. Locations of Labels and On-Screen Displays
  5. Programmable Multi-protocol
  6. 360° continuous pan, 180° Tilt, Auto Flip 90°
  7. 8 Privacy Mask, 8 titled zones
  8. Built-in Surge and Lightning Protection
  9. Auto Running Resume after Manual Operation
  10. Color 18X, 22X, 27X, 36X optics camera module.

Specifications

Model No. HK-GNS8277 HK-GNS8225 HK-GNS8182 HK-GNS8272 HK-GNS8362
Image Sensor 1/3 Sony Exview CCD 1/4 Supper HAD CCD II 1/4 Sony Exview CCD 1/4 Sony Exview CCD 1/4 Sony Exview HAD CCD
Total Pixels 380,000 440,000 440,000 470,000 470,000
Resolution 700TVLs 540TVLs 480TVLs 540TVLs
Lens f=4.1~73.8mm f=3.9~85.8mm f=3.6~98mm f=3.5~122.4mm
Zoom 27X Optical Zoom 10X Digital Zoom 22X Optical Zoom 12X Digital Zoom 18X Optical Zoom 12X Digital Zoom 27X Optical Zoom 10X Digital Zoom 36X Optical Zoom 12X Digital Zoom
All-in-one camera Hyking LG Sony 480CP LG or CNB Sony 1010
Horizontal Angle of View 48.0°(wide), 2.8°(tele) 54.0°(wide),2.5° (tele) 55.0°(wide), 2.4° (tele) 57.8°(wide), 1.7° (tele)
Minimum illumination Color 0.01Lux B/W 0.005Lux Color 0.001Lux B/W 0.00005Lux Color 0.7Lux B/W 0.002Lux Color 0.003Lux B/W 0.0001Lux Color 0.7Lux B/W 0.01lux
S/N Ratio > 50dB
Electric shutter 1/50~1/10000s 1/1~1/10000s 1/50~1/10000s
Privacy Zone Yes No Yes
IR Sensitive No Yes
Day/Night No Yes
level running 360° continuous revolve, 180° auto flip
Rotate speed 0.5°/S-280°/S level shift, 0.5°/S-280°/S upright shift
Presets points quantity 128pcs program speed and stick time
Cruising Route 8 groups multiple cruise, max to 16 preset points every group
Baud rate 1200/2400/4800/9600 optional
Control protocol Multi-Protocols
Proportional zooming Six grade
Power supply 24VAC 3A
Black light compensation ON/OFF
Video Connector 1.0±0.2Vp-p 75
Black light compensation BNC
Focusing system Auto/Manual
White Balance AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB Auto/Manual AUTO, ATW,WB, Manual WB
Temperature Storage -45 ~ 65 °C
Temperature Operation -40 ~ 60 °C
Installation option Wall mounting bracket, Suspending installation bracket, in-ceiling
Weight gross weight: 8.5kg; volume weight: 10.04kg
Package Box size: 34 * 36 * 41cm
