Home >> Products >> CCTV camera >> IR dome Camera >> HK-E312, HK-E318, HK-E352, HK-E410

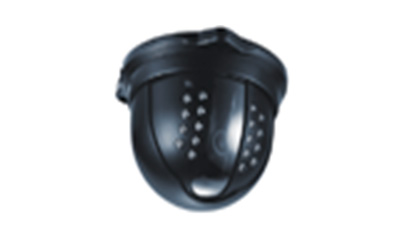

15m IR dome camera

Model number: HK-E312, HK-E318, HK-E352, HK-E410
15meters ir dome cameras
  1. 6mm Lens
  2. 18pcs IR leds
  3. 15M IR Distance

Specifications

Model No. HK-E410 HK-E312 HK-E318 HK-E352
Image Sensor 1/4" sharp CCD 1/3" sony supper HAD CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 18pcs IR LEDs
IR Visible Distance  15M  (Lens 6mm)
Sync System Internal
Minimum Illumination 0.8 Lux F1.2 0.5 Lux F1.2 0.2 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVLs 420 TVLs 480 TVLs 520 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
